DC Gear Motors
T10 DC Series Gear Motor Units
Featuring moulded plastic gears and housing, the MBT10 series DC gear motor provides a low cost alternative to standard metal motor gearboxes. The system has been designed on a modular basis to provide maximum versatility - two motors for different torques, choice of gears for three ratios and three different hex plug-in output shafts which can be front or rear mounted.
Overview
The T10 DC Gear Motor is suitable for use in: vending machines.
Specifications
- 380 (24VDC) or 555 (12VDC or 24VDC) series DC motor (see FRS DC section for details)
- Output Torque: 0.28Nm - 1.9Nm depending on speed and motor size
- Catalogue Speed Range: 80, 140, or 160rpm
- Actual Off Load Speed Range: 65 - 190rpm

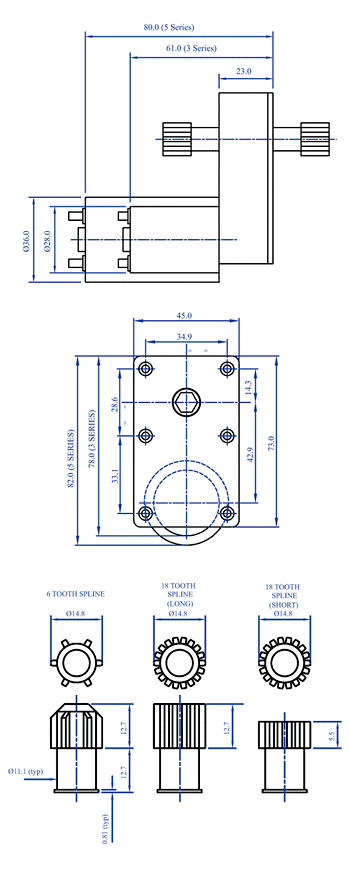

Drawings & data
