T4 DC Series Gear Motor Units
Used extensively in chemical pumping and dosing applications, the CBT4 DC gear motor has a compact design which makes it ideal for mounting inside small enclosures.
Overview
The T4 DC Gear Motor is suitable for use in: peristaltic pumps & diagphragm pumps.
Specifications
- Available with an SC9 AC motor in 5 stator stack sizes
- Available with a 5 series DC motor (see FRSDC section for details)
- Output Torque: Up to 4Nm depending on speed and motor size
- Speed Range: 30 to 325rpm

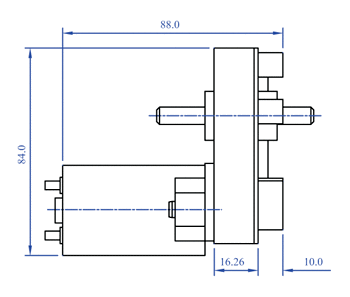

Drawings & data
