DC Gear Motors
T5 DC Series Gear Motor Units
This versatile plastic bodied motor gearbox is slim-line and lightweight. Designed with the product engineer in mind, this unit is ideal for applications where space is at a premium but quality cannot be compromised.
Overview
The T5 DC Gear Motor is suitable for use in: packaging equipment, banking equipment, phone card machines, turntables, peristaltic pumps & diagphragm pumps.
Specifications
- Available with a 3 or 5 series DC motor (see FRS DC section for details)
- Output Torque: Up to 2Nm depending on speed and motor size
- Speed Range: 50 to 325rpm

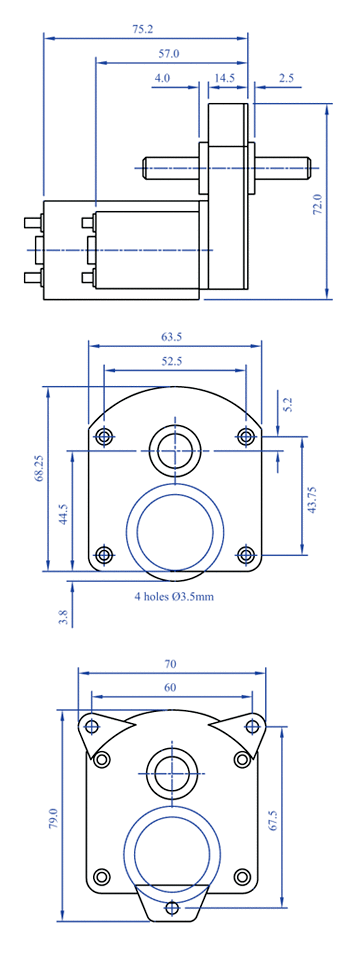

Drawings & data
